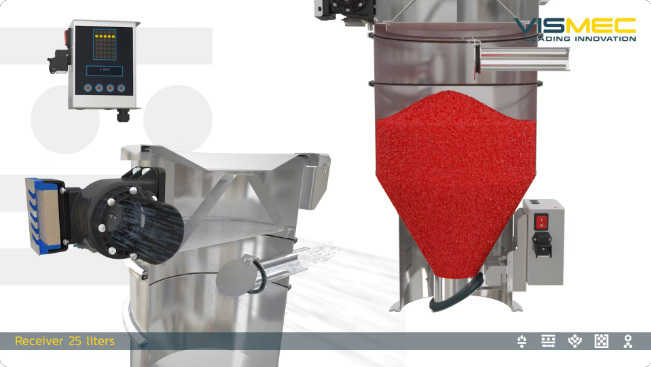

Vismec receivers (loaders)

Material receivers (loaders) are devices specially designed for transporting raw materials. They ensure efficient and automated transfer of raw materials to a storage location or machines by means of vacuum. For this purpose, an external vacuum pump must be used.

The Vismec receivers (loaders) are available in various versions and options. With a wide range from 2 to 160 litres, we can always help the customer choose the right receiver (loader). In addition, the Vismec receivers (loader) are not only beautifully designed, but they also have a number of distinctive advantages.

Features and Benefits:

  • Completely made of stainless steel
  • Modular 360° rotatable
  • Lockable lid for easy cleaning
  • Vacuum valve with filter
  • Foot valve with specially developed seal
  • Inspection hatch with quick-release
  • Easy to clean
  • Choice of various filters
  • Choice of various control options
  • Choice of various sizes
  • Various options available

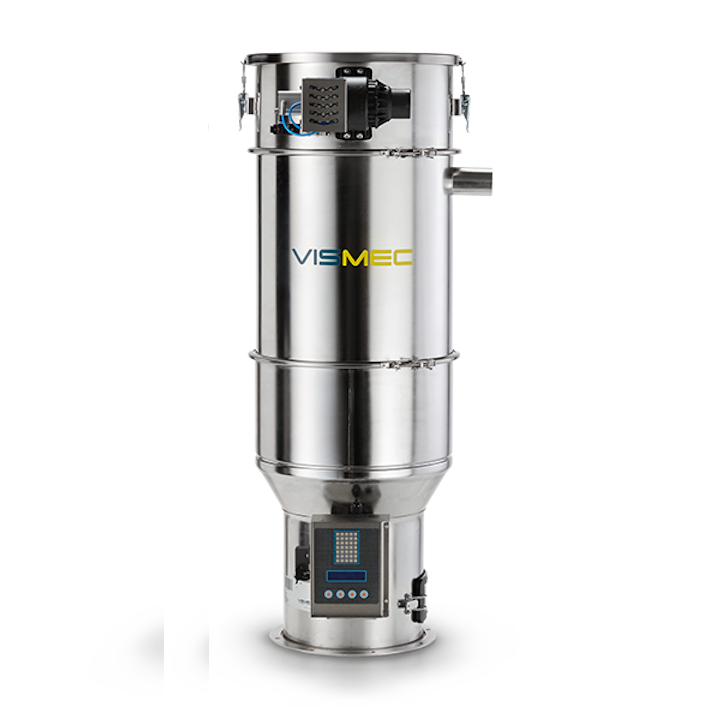

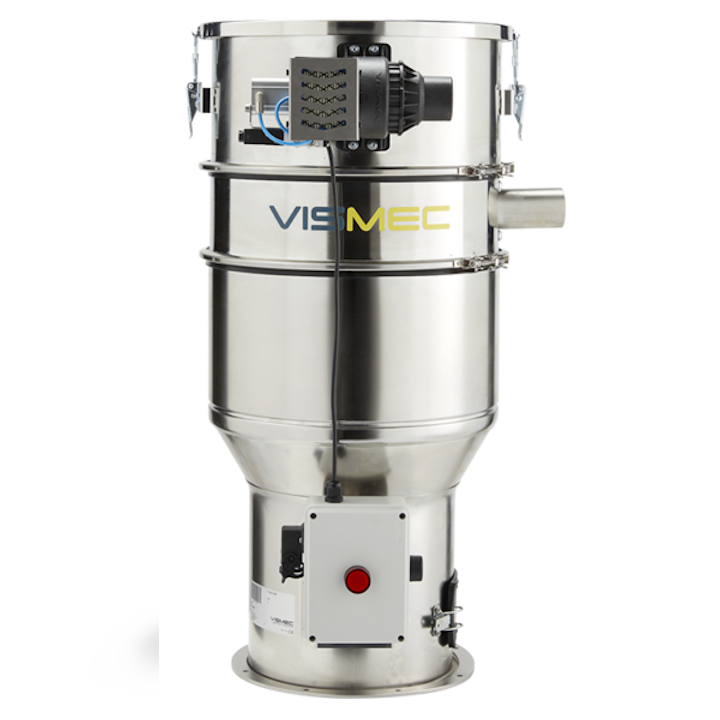

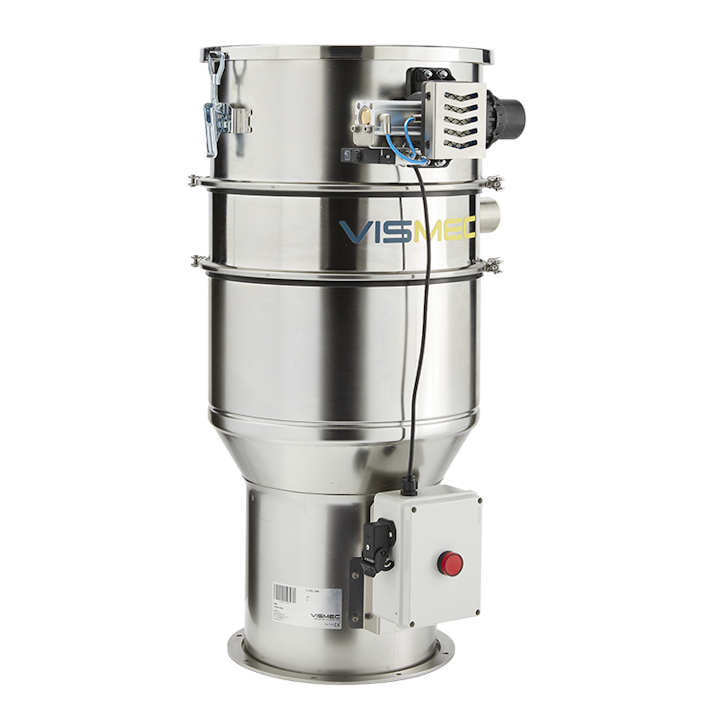

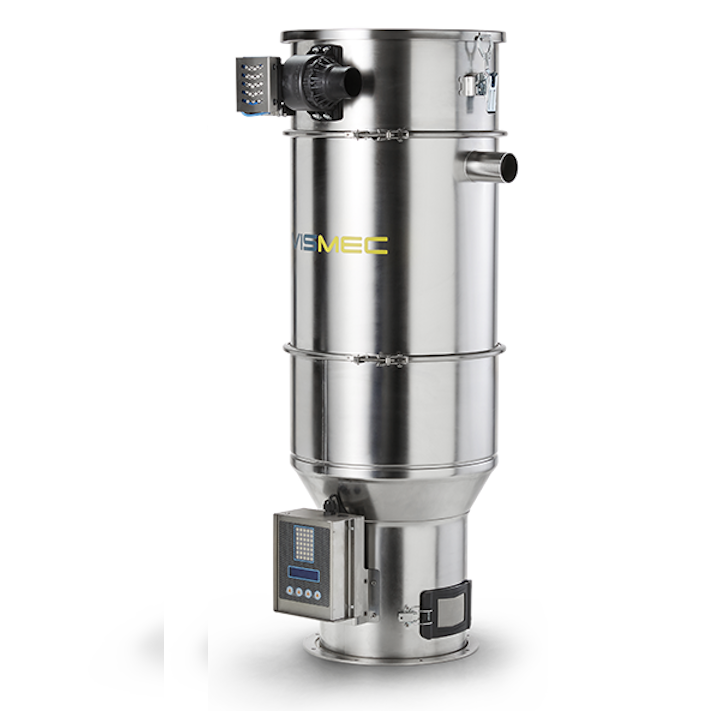

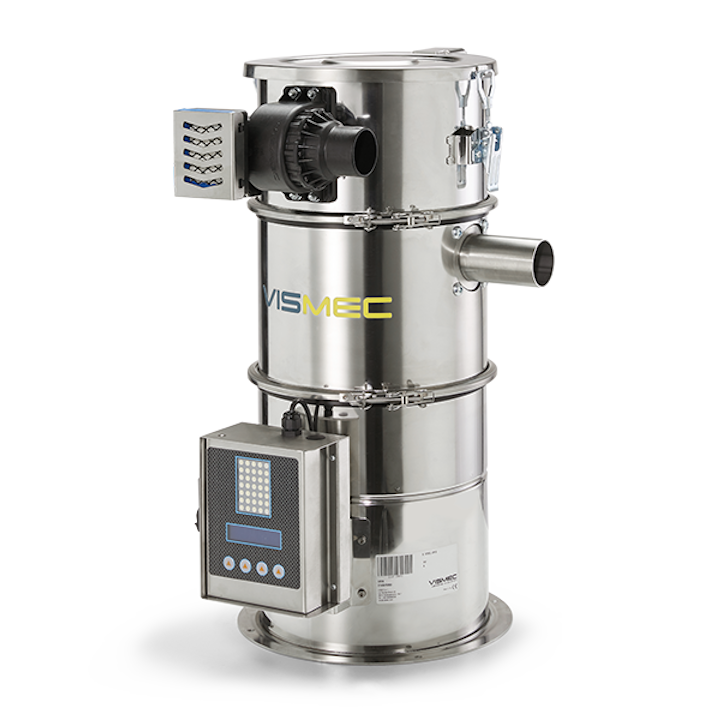

Vismec receivers (loaders)

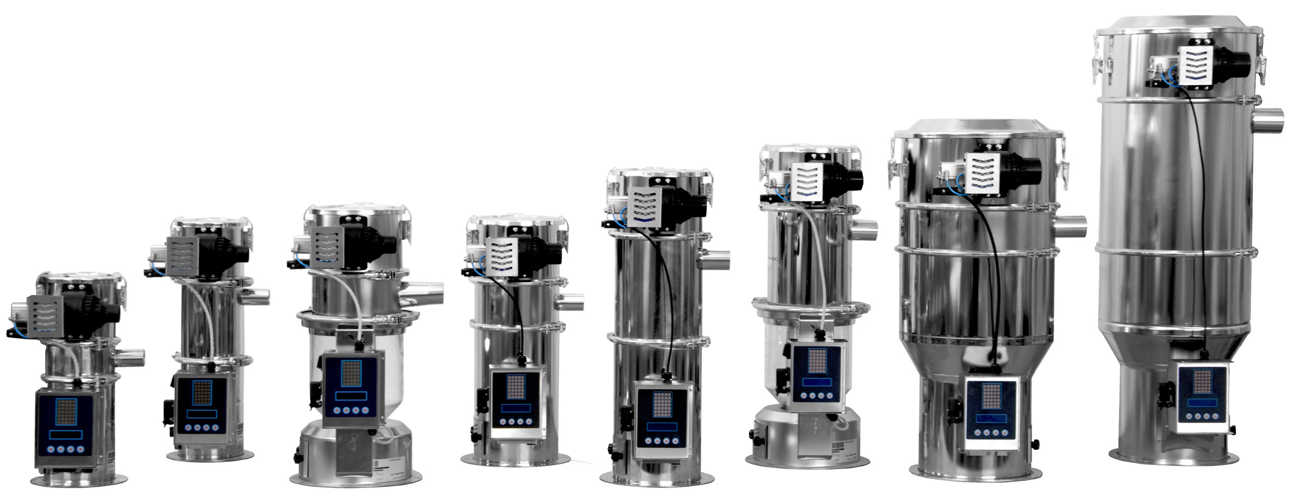

The Vismec receivers have a very wide range in terms of size (2-160 litres) and versions. Because the receivers are constructed from compartments and can be rotated 360°, any desired configuration can be realised. This means that the operation, material supply and vacuum can be set to any desired position.

Possible filters:

  • Stainless steel mesh filter (to discharge dust to the vacuum pump filter unit)
  • Fabric filter (in case of low dust and to keep dust in the process)
  • Cartridge filter (in case of heavy dust and to keep dust in the process)

Foot valves:

  • Standard version
  • Extra large for difficult flowing materials
  • Butterfly valve for larger capacities

Additional options:

  • Filter cleaning
  • Hardened inlet valve
  • High temperature seals

Controls:

  • Basic control (for control via the dryer, pump or third party)
  • Visibus control (control via the loader, server or Supervisor)
  • Flexbus control (for control via a Maguire blender)

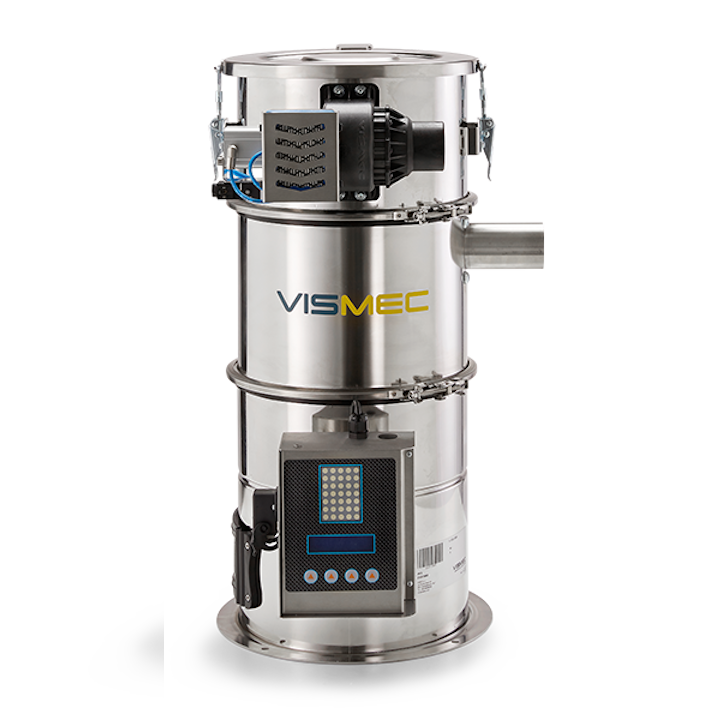

The Visibus control on the receiver (loader) has a clear LED status indication that allows you to see the status of the receivers (loaders) and whether there is an alarm from a distance. The receiver (loader) can also be set using the control.
