Vismec Drycube dryers

Vismec Drycube dryers

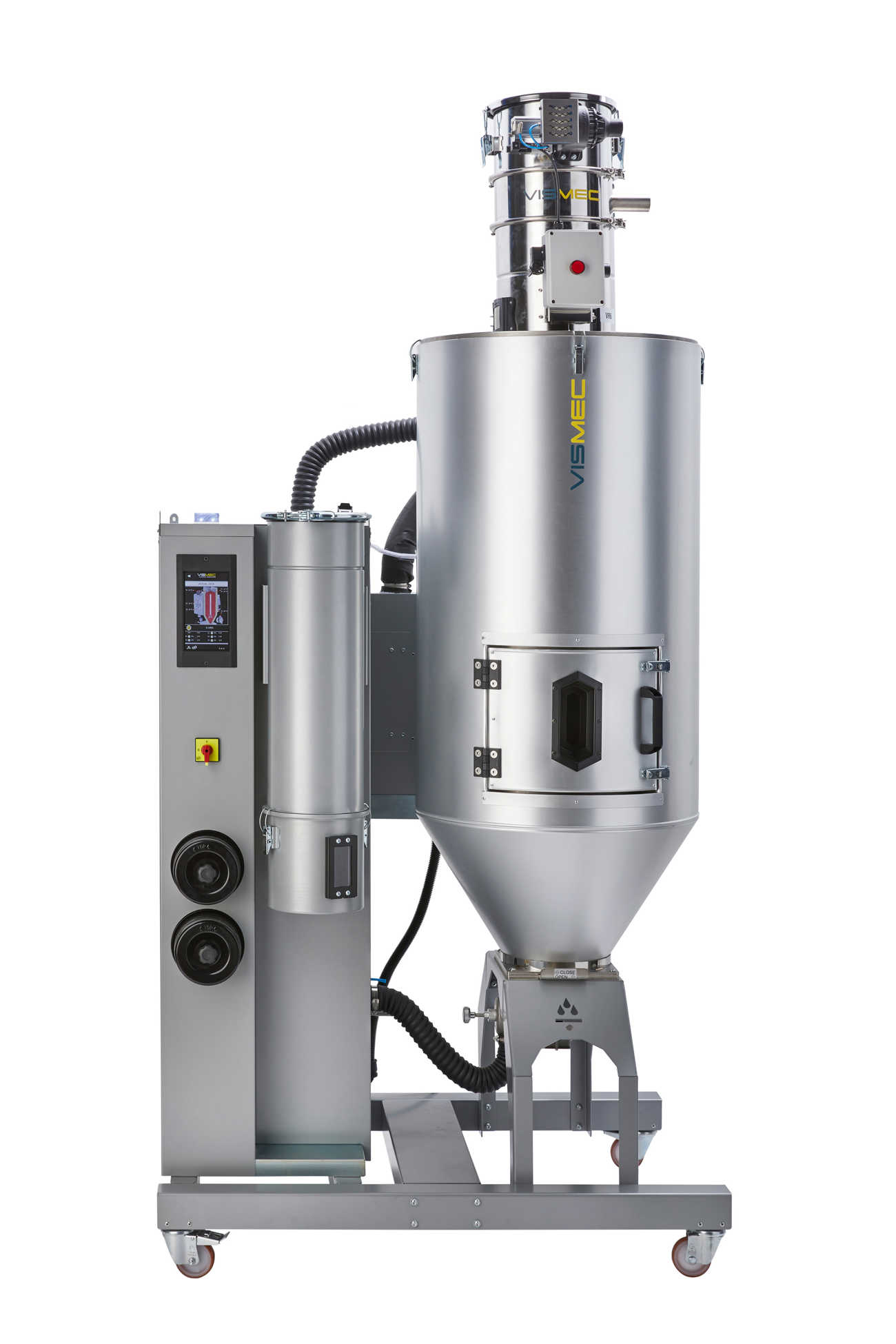

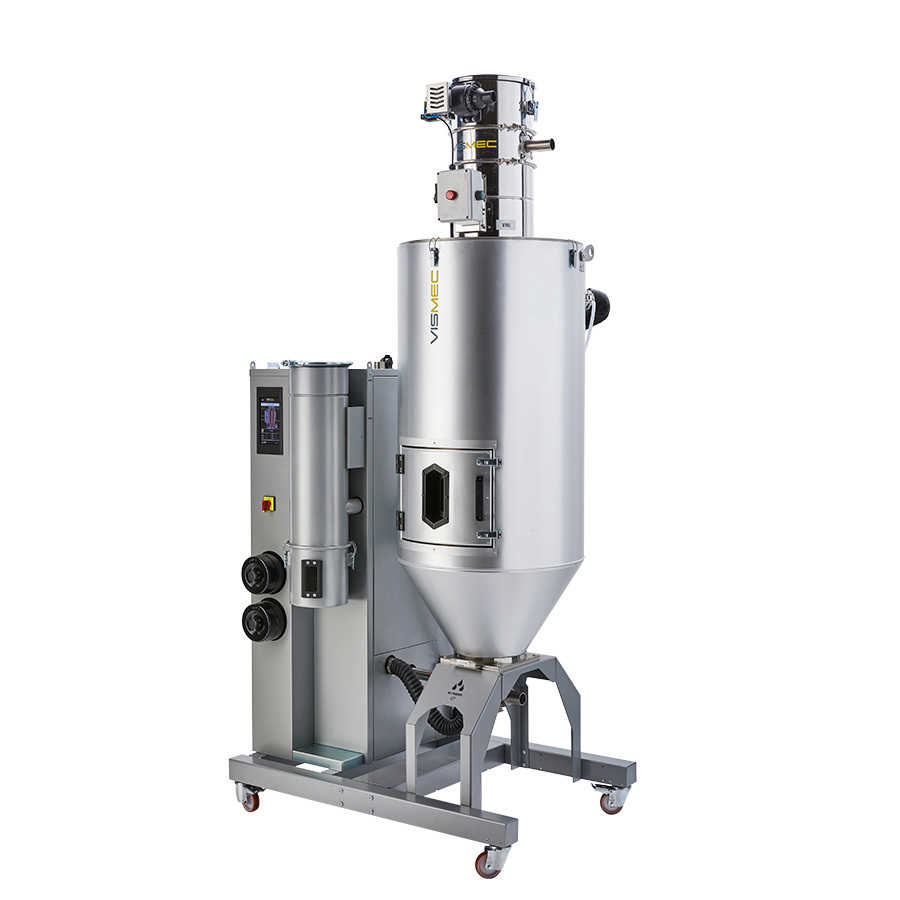

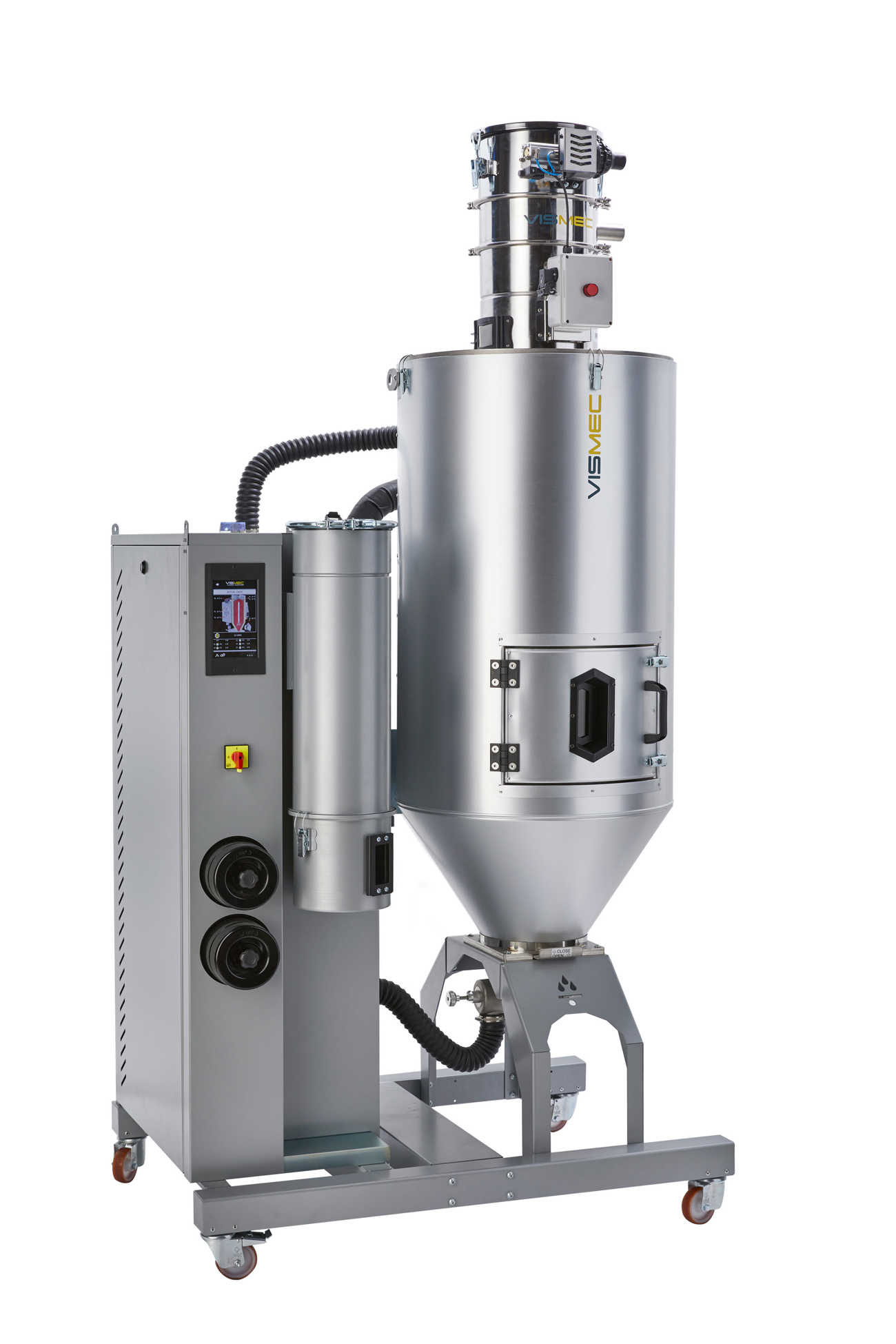

The Drycube dryers from Vismec are medium-sized dryers where the dryer has its own built-in vacuum pump to supply both the receiver on top of the dryer and the receiver on top of the machine with material. This is done by taking the warm and dry air from the drying hopper, which means that hygroscopic materials have no chance to absorb moisture again during transport.

In addition, the vacuum pump is also equipped with a three-stage filter system to remove dust from the material and prevent it from entering the vacuum pump. Thanks to its simple and clear touchscreen control, anyone can handle this dryer and thanks to innovative techniques, this dryer is up to 40% more energy efficient than dryers that still use traditional drying techniques.

Features and Benefits:

  • Available with a drying hopper from 30 to 800 litres
  • Adjustable temperature settings ranging from 50-185°C (depending on model).
  • 5 year warranty on the rotating honeycomb
  • A clear and user-friendly 7-inch touchscreen control.
  • Very stable drying process even for the most difficult to dry materials
  • Also suitable for biological materials
  • Integrated blower for raw material transport to the receivers
  • Reuse warm and dry air for raw material transport to the machine

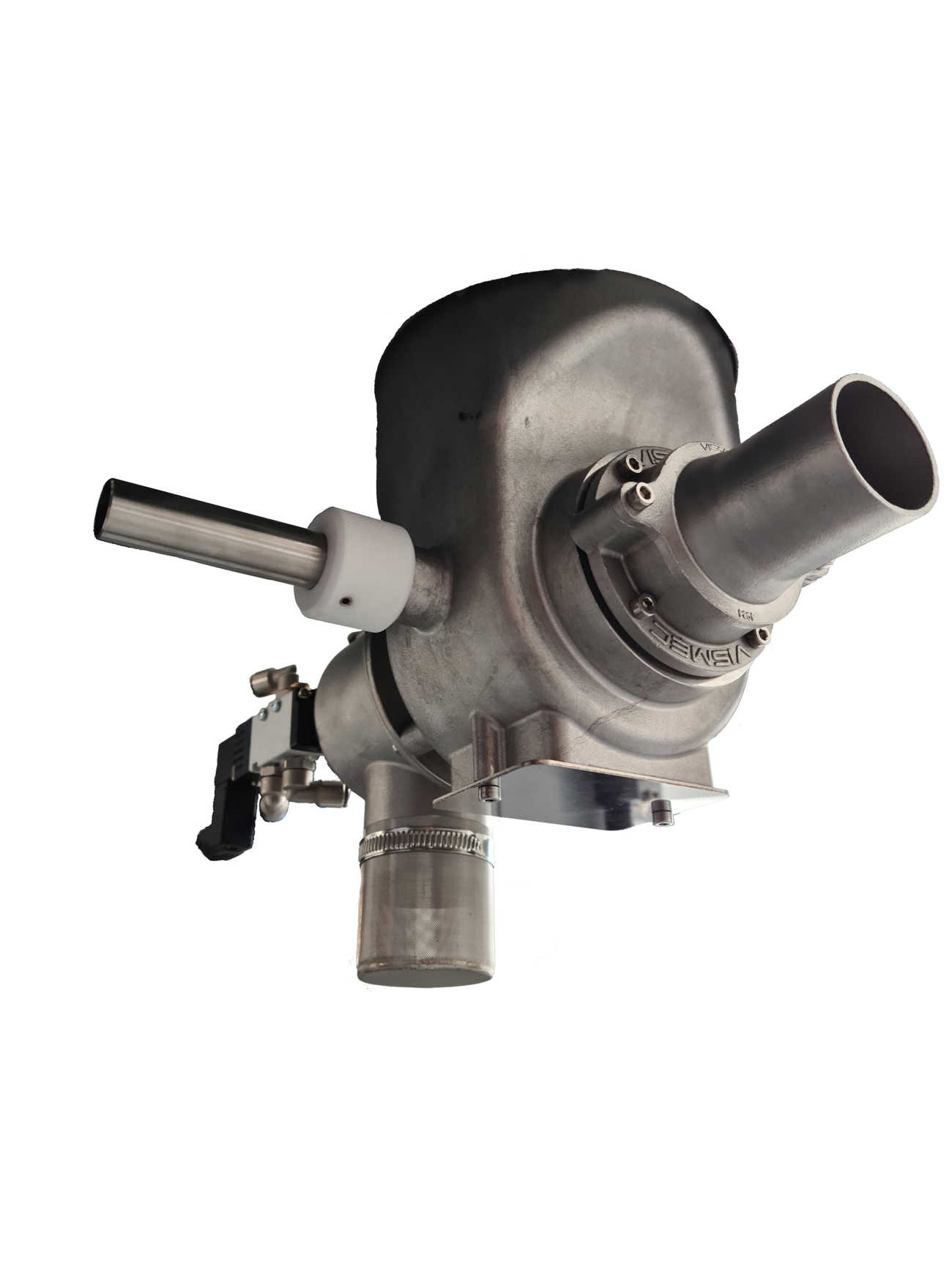

  • Special suction box with integrated emptying function and sampling tapping point
  • Easy accessibility of the filters

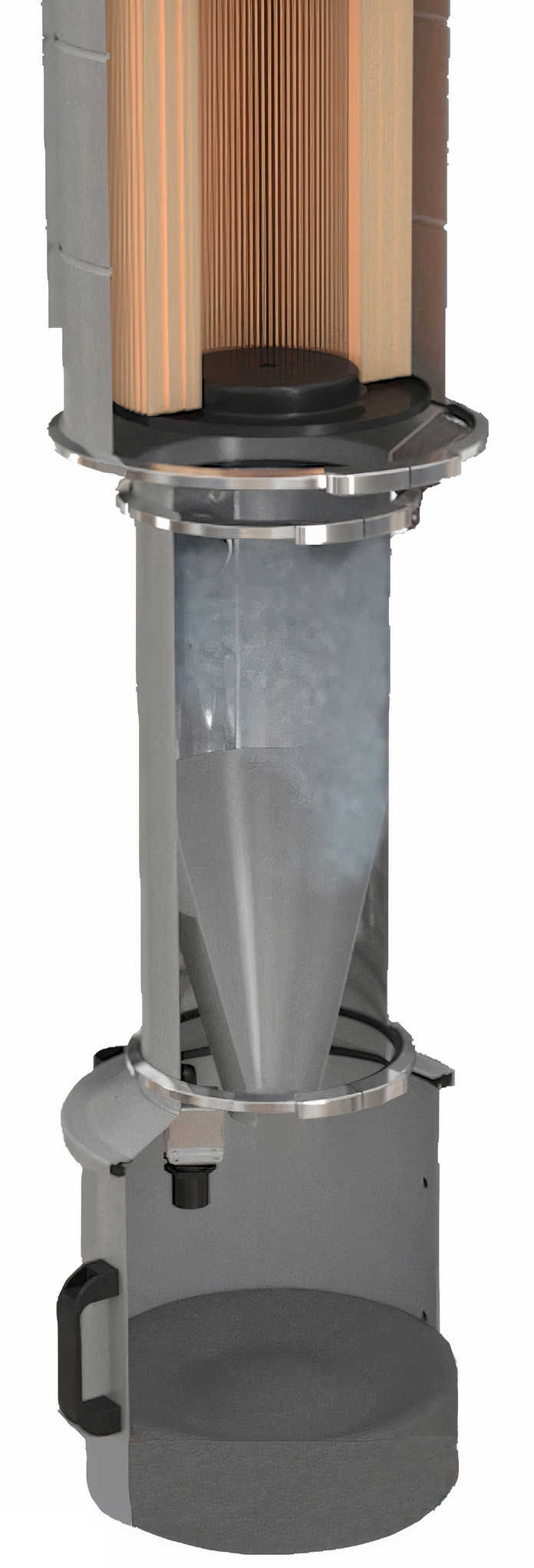

  • Unique three-stage filter system for dedusting the material

Vismec Drycube dryers

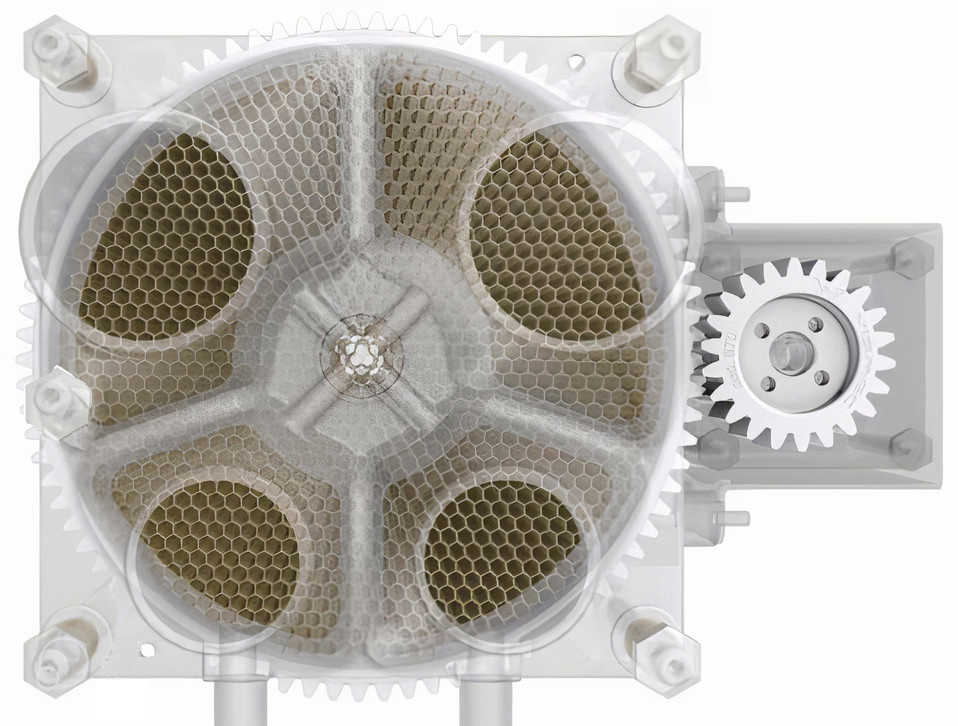

The unique dryers of Vismec are patented honeycomb dry air dryers where drying and regeneration takes place continuously and a very stable process is created. The molecular material in the Vismec dryer does not consist of encapsulated granules but is glued directly onto a honeycomb. This allows the dryer to perform the regeneration process at a much lower temperature and is up to 40% more energy efficient because of this alone!

This honeycomb lasts a very long time, which also saves extra maintenance costs. In addition, the Drycube no longer needs a separate cooling water, compressed air or vacuum connection. In short, the Vismec dryers offer many advantages and require less maintenance.

Features and Benefits:

  • A precisely adjustable constant dew point (0 to -40/-50°C.)
  • An energy saving of more than 40% compared to conventional twin tower dryers.
  • A generous 5 year warranty period on the rotary Honeycomb, which in reality lasts much longer than 5 years, without the need to replace the molecular material.
  • A clear and user-friendly 7-inch touchscreen control.
  • A compact setup that takes up less floor space.
  • No cooling water connection required.
  • No compressed air connection required.
  • No vacuum connection required
  • The ability to set up custom material recipes.
  • Programmable weekly timer function.
  • Automatic adjustment of air flow to the quantity to be dried (kg/hour).
  • Built-in protection against overdrying.
  • SLS mode to prevent undried material from reaching production
    (in combination with a pneumatic valve).
  • Brushless blowers for regeneration and process air.
  • Drive with solid gear-rack technology instead of drive belts.
  • Adjustable temperature settings ranging from 50-180°C
  • A wide selection of options available.
  • The dryer and receivers can be operated via 1 clear touchscreen control

Fishmec

Founded in 2007 with a clear vision, Vismec has grown into a respected player in the market. This growth is the result of dedication, sustainability and a strong focus on customer focus. Today, the company has 50 dedicated employees and over 10,000 square meters of workshop space.

Vismec's focus is on quality which has resulted in an annual sales of over 1,000 dryers. These high-quality dryers are distributed worldwide, where currently over 15,000 Vismec dryers are in operation in the European market, making Vismec a renowned player in the industry.

The name Vismec comes from “VIS” which in Latin means excellence, strong and power. MEC stands for mechanical. At Vismec we believe that efficiency, research and results are in our DNA.

Vismec supplies industrial machines for the high-quality plastics processing industry, such as dryers, transport systems, dosing systems and accessories. Equipment is designed to save production costs, make processes easier and more efficient and save energy. With over 15 years of experience, Vismec is the reliable partner in the plastics processing industry.
