Moditec high speed grinding mills

Moditec high speed grinding mills

The Moditec BM series is specially developed for the softer but especially rubbery materials. With a speed of 260 rpm this grinder processes the materials to perfect regrind. Thanks to the special slide system these grinders are easy and quick to clean.

Features and Benefits:

  • Solid steel frame
  • Various engine powers available
  • Easy and quick to clean
  • Soundproof hopper <75dB (depending on material)
  • Special anti-wear steel blades
  • Available with various options
  • Very compact

Moditec high speed grinding mills

The Moditec BM series is available in two different versions, namely the BM170 and the BM340. Depending on the material, the BM series can process up to a maximum of 80 kg/hour. The Moditec BM series has a solid and compact construction. In addition, these grinding mills have special anti-wear blades that are mounted directly on the shaft.

  • Available in 2.2kW or 4kW motor
  • Open rotor system for better results
  • Easy disassembly of the anti-wear blades
  • Special anti-dust seal to protect the bearings
  • Direct drive using a flexible coupling
  • Equipped with a special slide system to allow the rotors to move freely
  • All parts of the grinding mill are easily accessible for maintenance
  • Various sieves available with different sizes and options

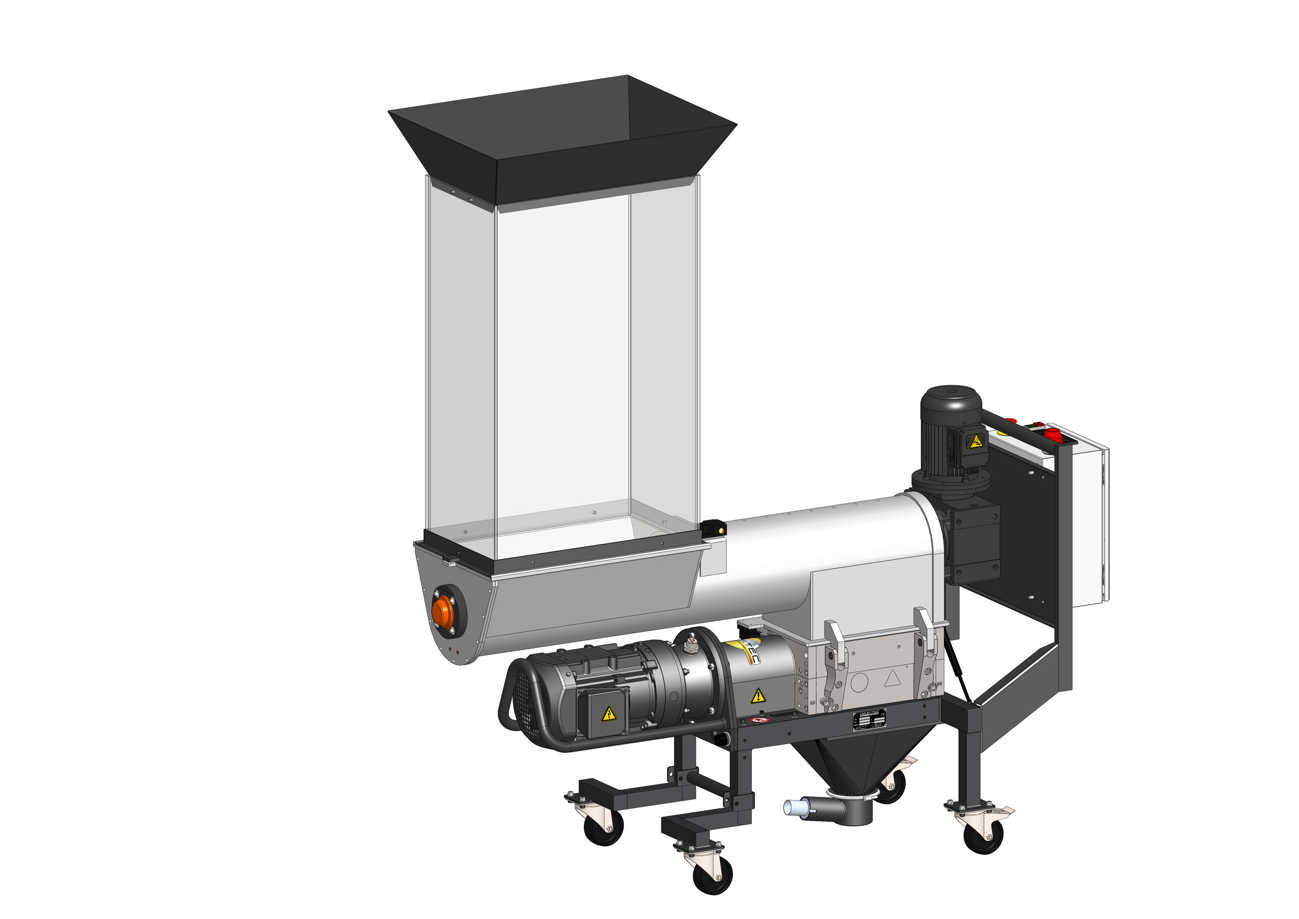

  • Also available in screw feed model for direct placement under the machine.
  • Standard 2 blades in the grinding chamber and 3 blades per rotor
  • Available with rotonivo sensor in the collection container as a level indicator

Moditec

Moditec was founded in 1981 by Richard Diaz who had already had expertise in plastics processing for several years. Richard focused on recycling materials and in 1985 he was able to launch the new generation of grinding mills, namely the slow-turning grinding mills.

In order to further expand the range, Richard decided to enter into a partnership with Gilles Dutour and together they also launched a range of conventional high speed grinding mills. In recent years, Moditec has built up a network of 36 distributors worldwide.

Thanks to the innovative system of the double opening in the grinding chamber and patented solutions such as the Masher or the IMD system, Moditec can distinguish itself from its competitors.
