Crizaf carousels

Crizaf carousels

Crizaf has different types of systems to buffer products. Products are supplied from the injection moulding machine by means of a robot or conveyor belt, from here they will be stored in boxes, crates or bags. A simple but compact way to buffer products is by means of a carrousel. The carrousels offer an efficient solution for storing products with the smallest possible floor space. A big advantage of this is that production can be run at night or in the weekend without personnel on the work floor.

The carousel control can specify how many products are made each cycle, how many boxes/bags need to be filled and how many products need to be put in it. Through communication with the relevant machine, the carousel knows when it needs to continue running or when it can stop the injection moulding machine from producing if all boxes, crates or bags are filled.

We distinguish 2 versions here, namely:

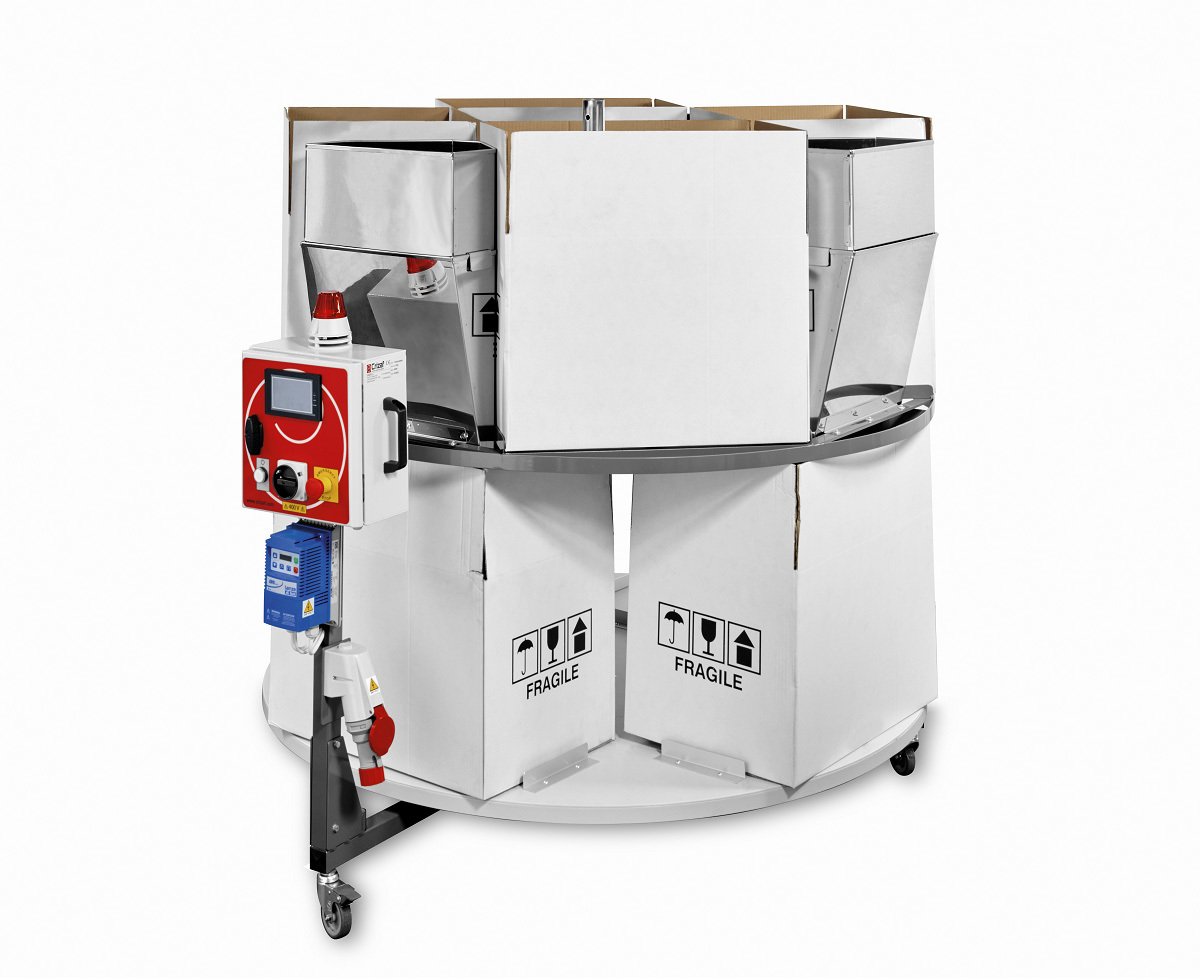

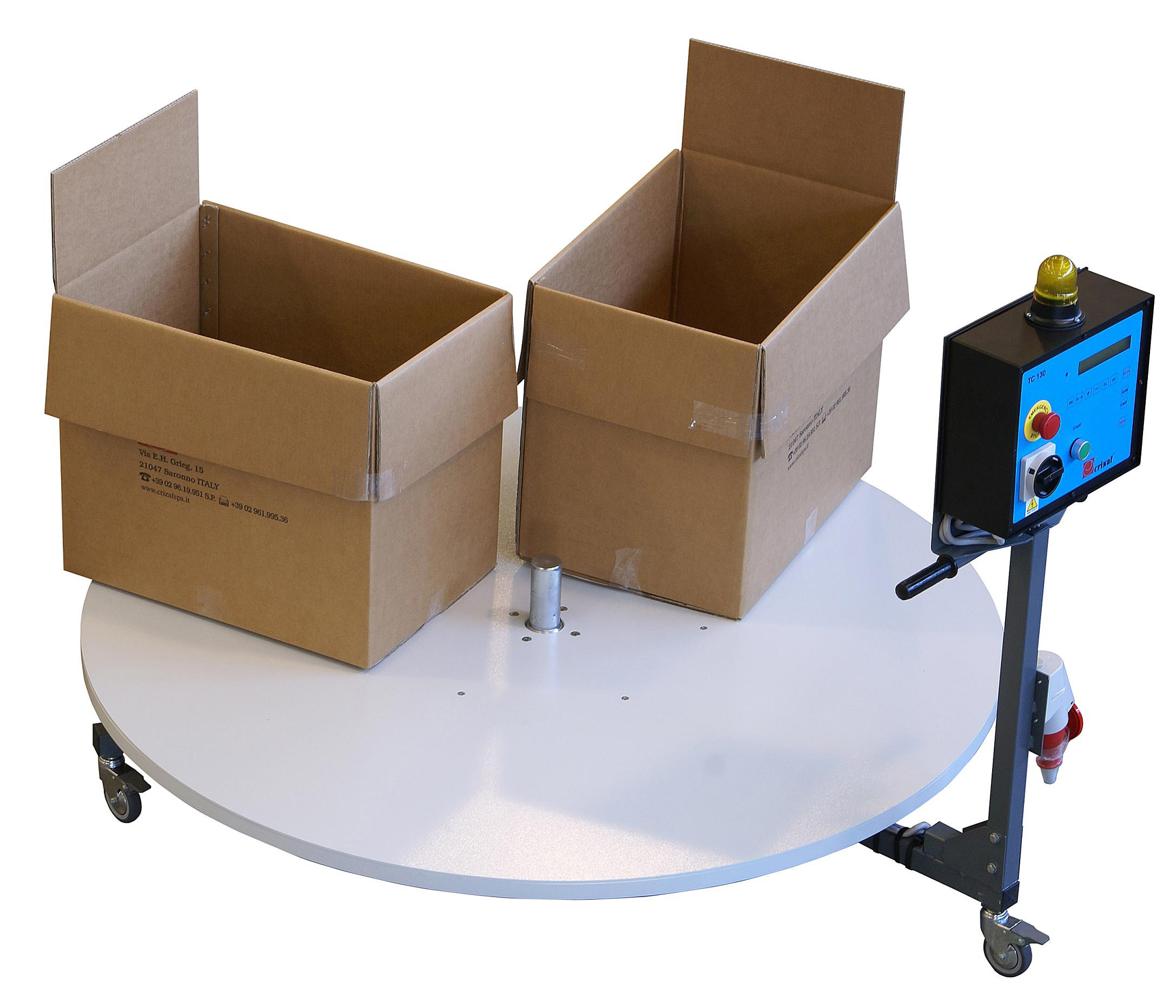

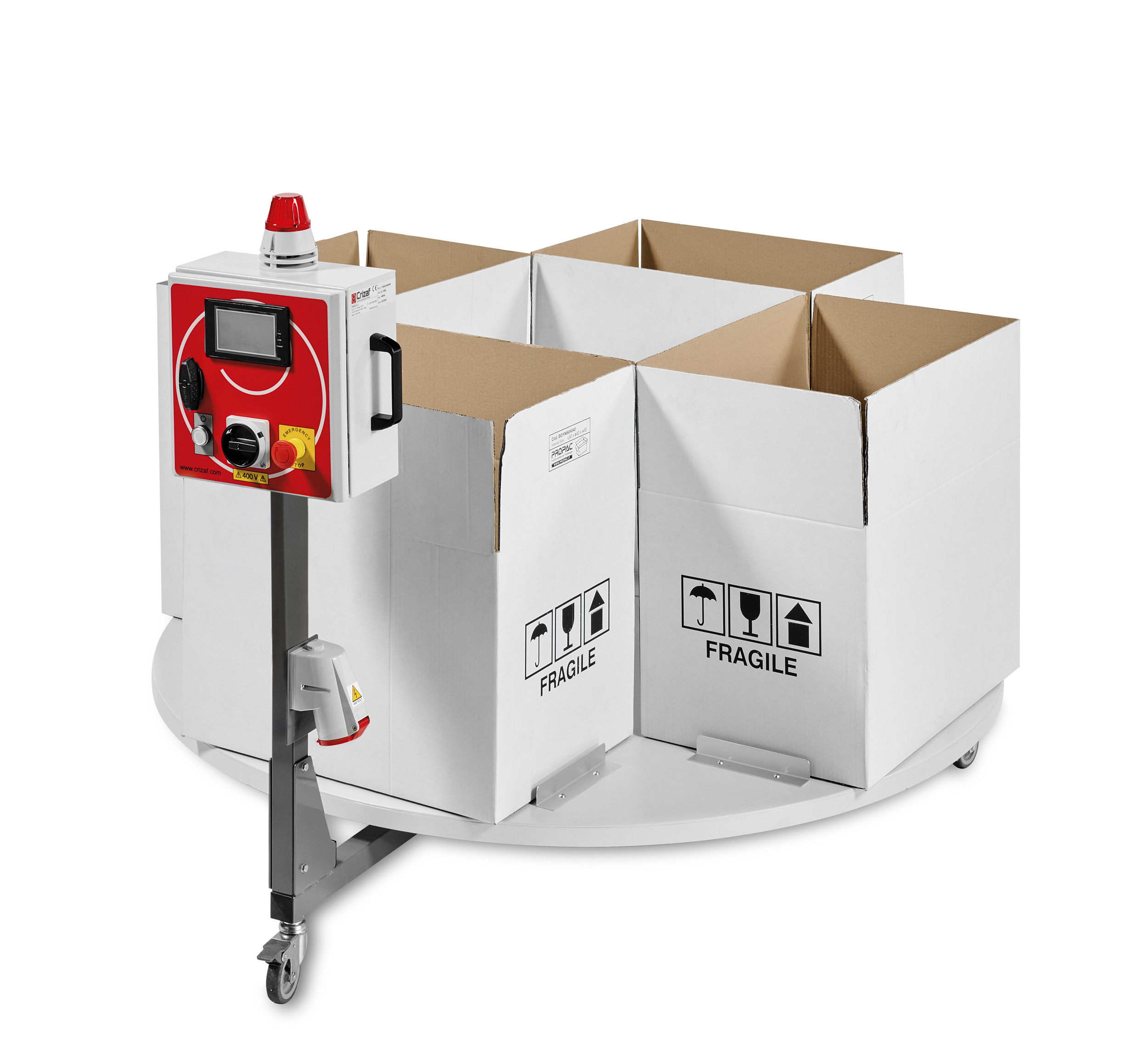

  • Carousels for boxes and crates

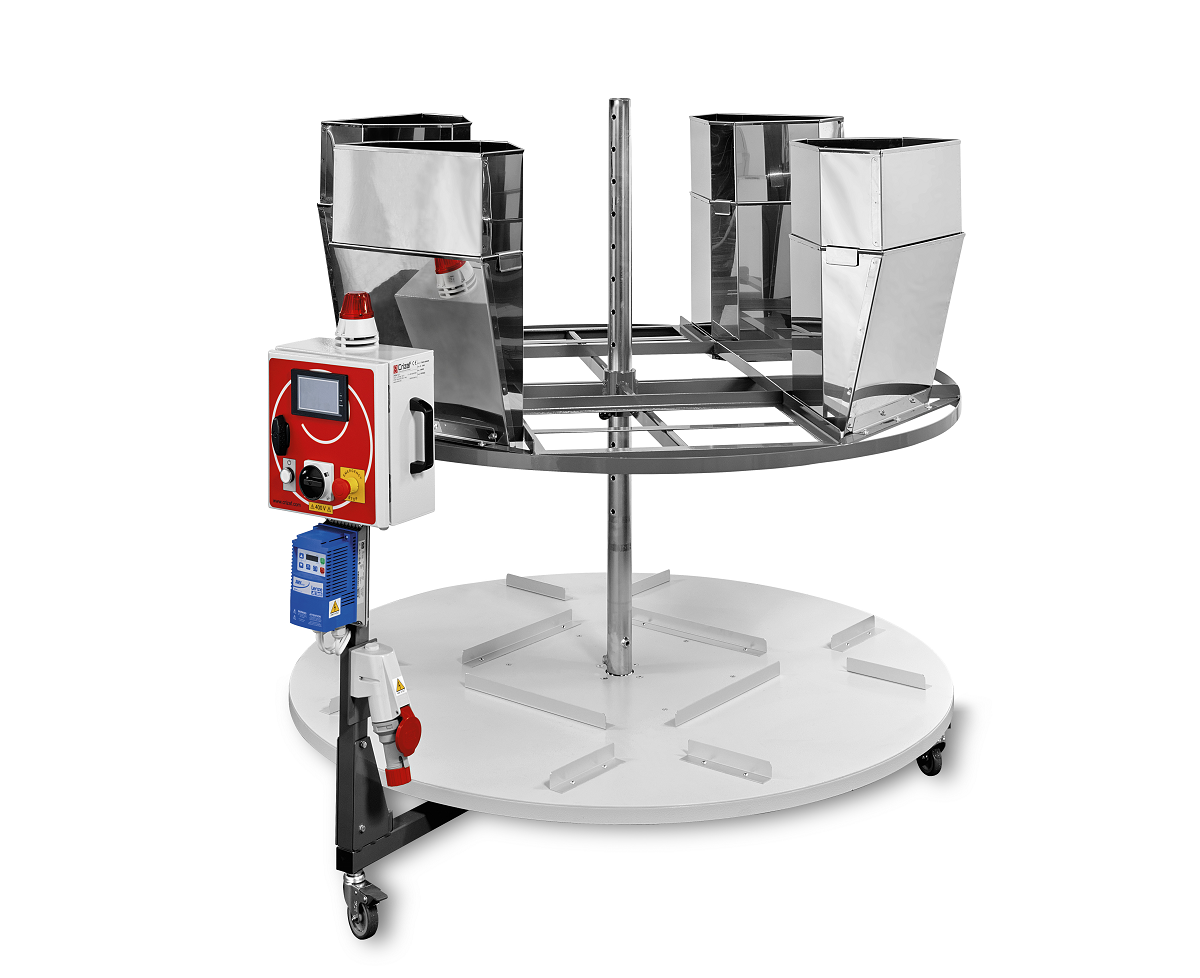

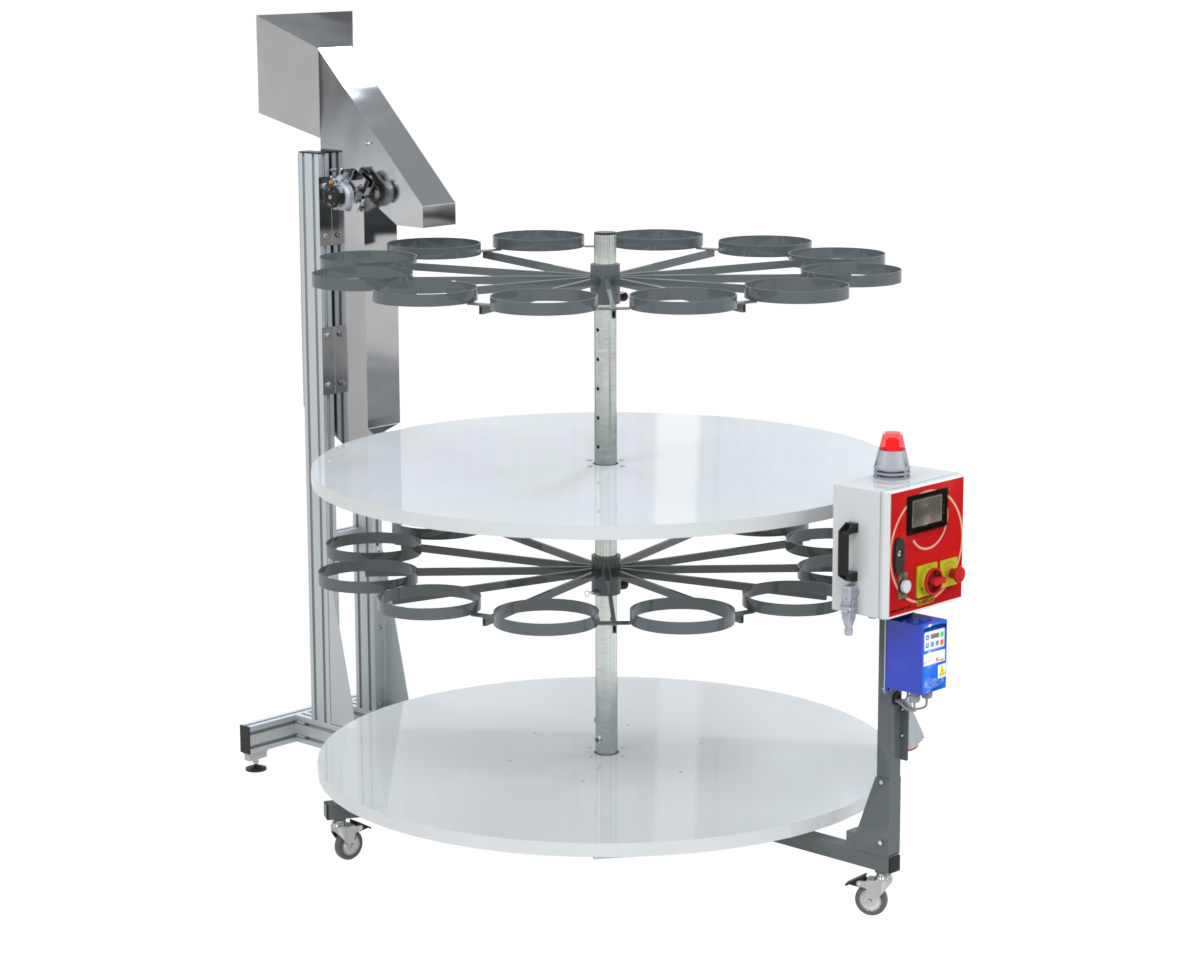

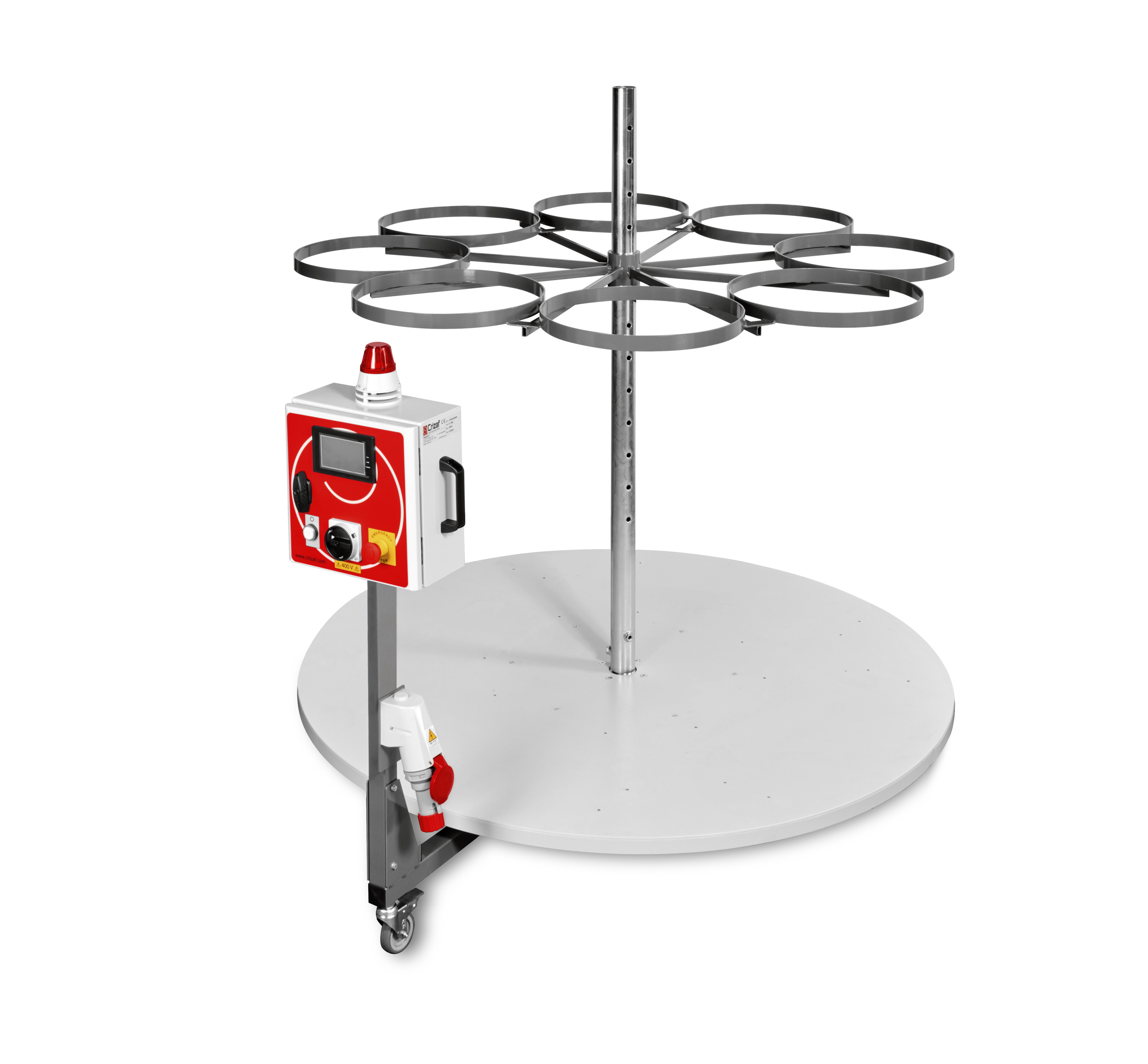

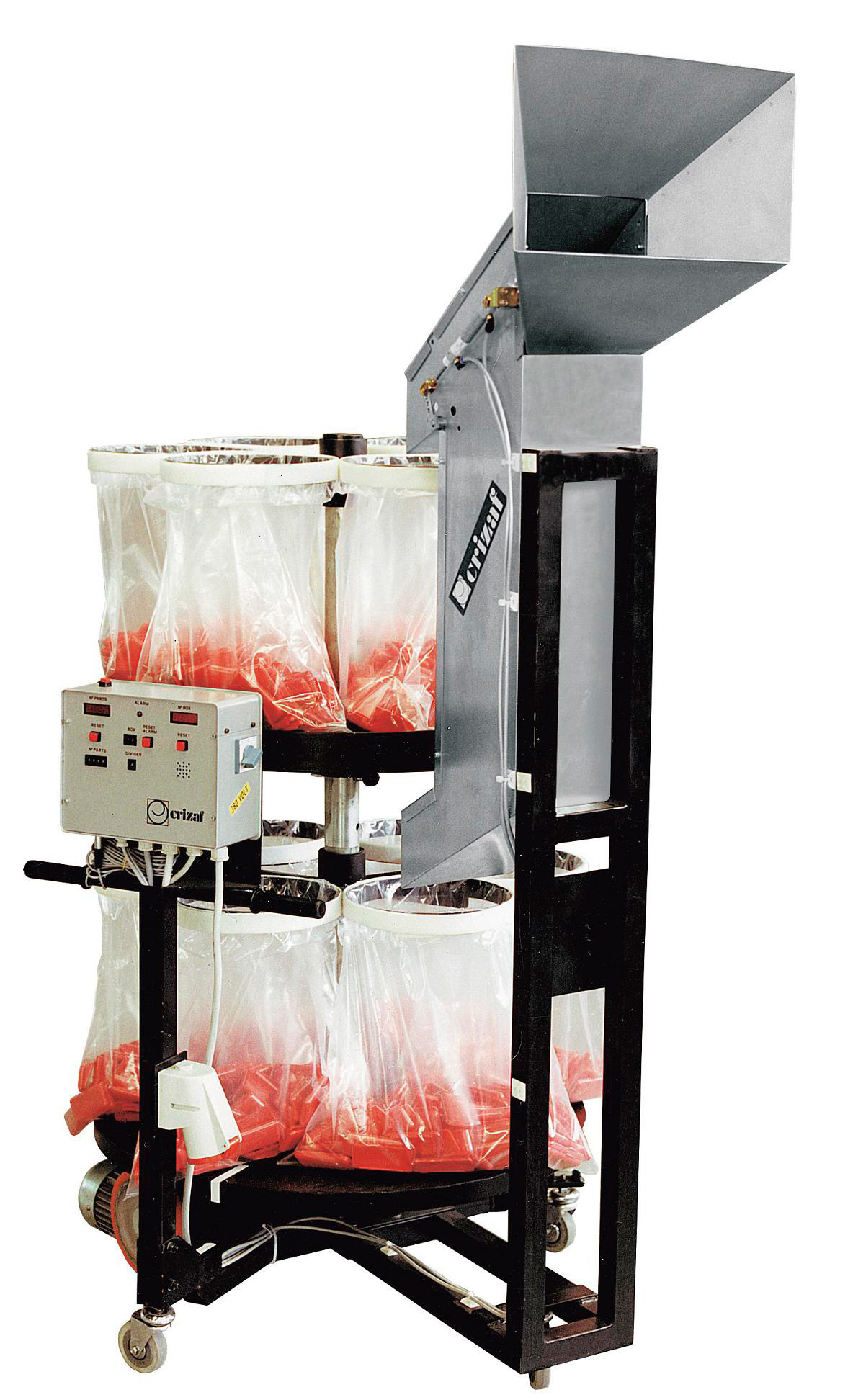

  • Carousels for bags

Crizaf carousels

The carousel is connected to the machine by a potential free contact. By means of this signal the products are counted.

The carousel also has a connection for a conveyor belt. When the desired number of products in a box is reached, the conveyor belt is stopped, the carousel turns and then the conveyor belt is started again.

Features and Benefits:

  • Various sizes of carousels available
  • Single or double carousels for more buffer capacity
  • Easy to move and integrate
  • Robustly constructed and easy to set up
  • Very compact
  • Low purchase costs compared to other solutions

Crizaf

Crizaf is an Italian company founded in 1954 and specialized in conveyor belts, branch separators, filling, storage, weighing and counting systems. Over the years the company has grown into a multinational with offices in Italy, USA, Brazil and India and has an extensive sales organization worldwide.

Products are used in a wide variety of industries including: automotive, cosmetics, electrical, food, household, medical/pharmaceutical, packaging and recycling, etc.

Crizaf is a technological partner, able to offer each customer not only quality, continuity and reliability, but also flexibility. They work together with the customer to create technical solutions!
