Babyplast vertical injection molding machines

Vertical Babyplast Injection Molding Machine (6.2t.)

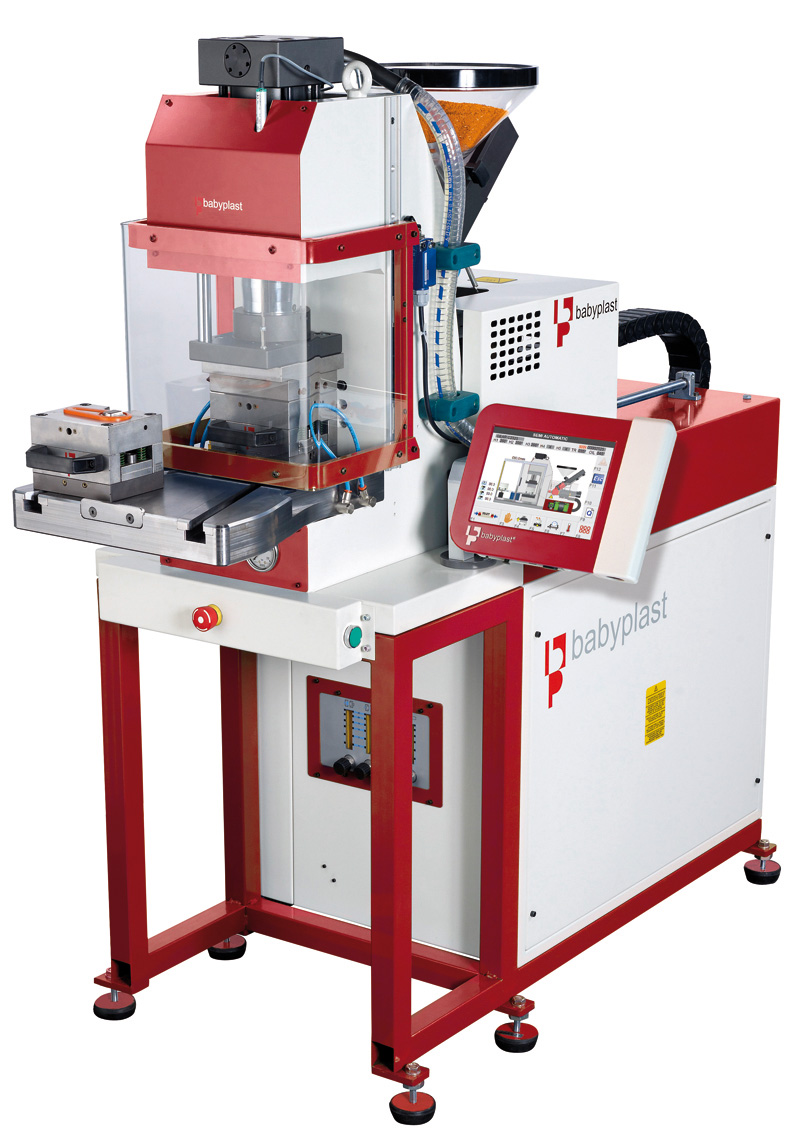

The vertical Babyplast 6/10VP injection molding machine guarantees maximum precision thanks to the injection plunger system and the pre-plasticizing system. To obtain an optimal shot weight, different diameters of pistons are available.

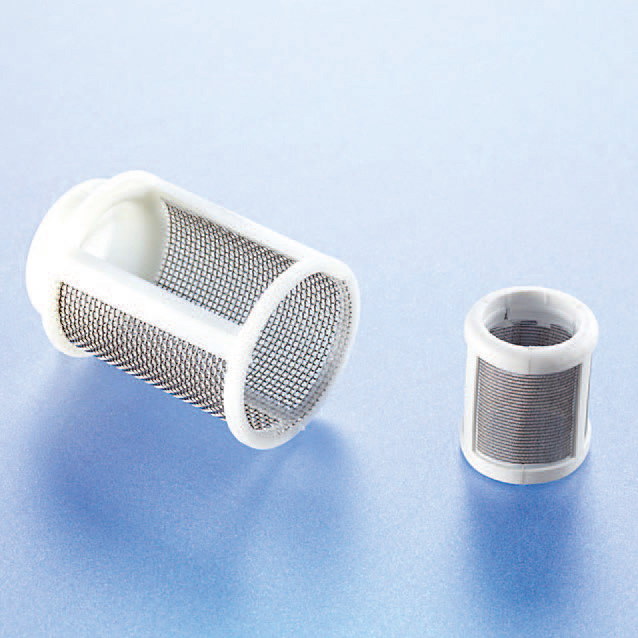

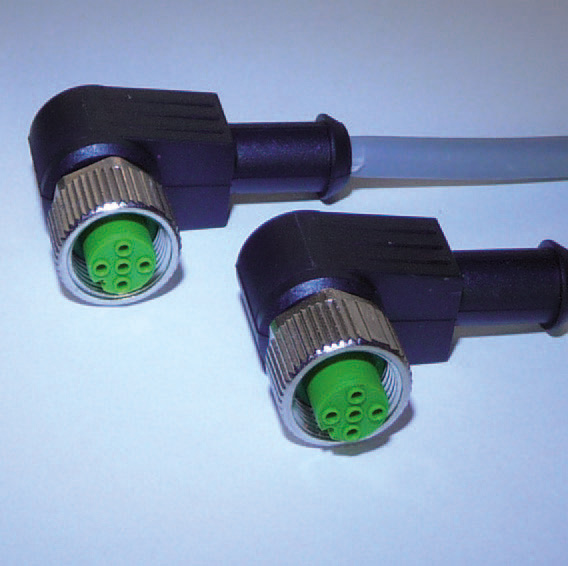

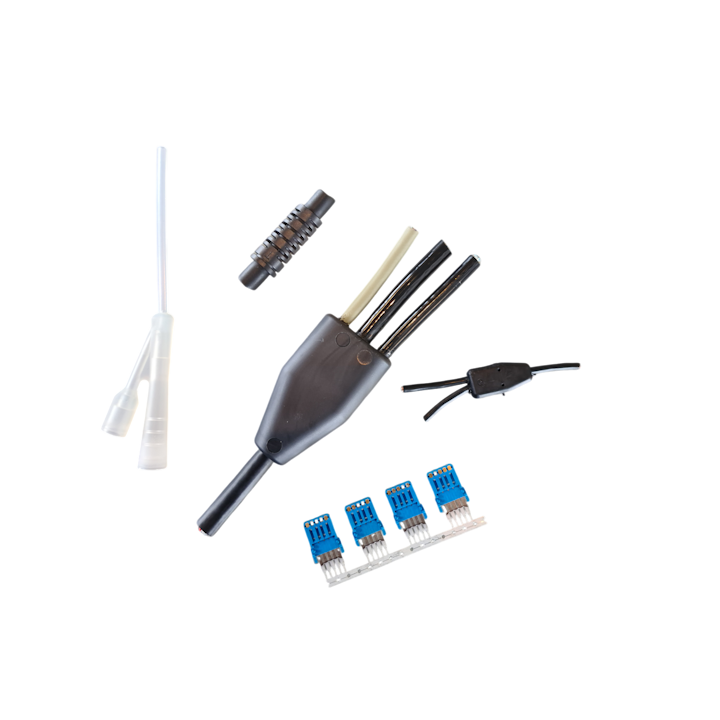

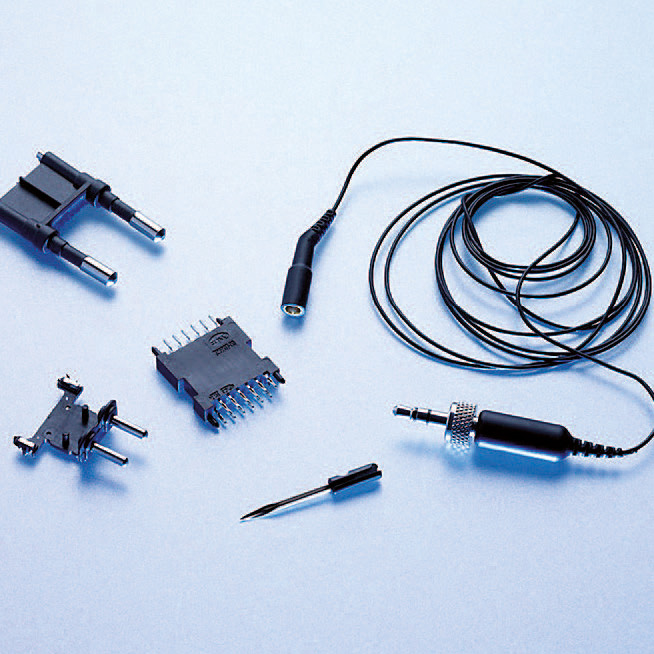

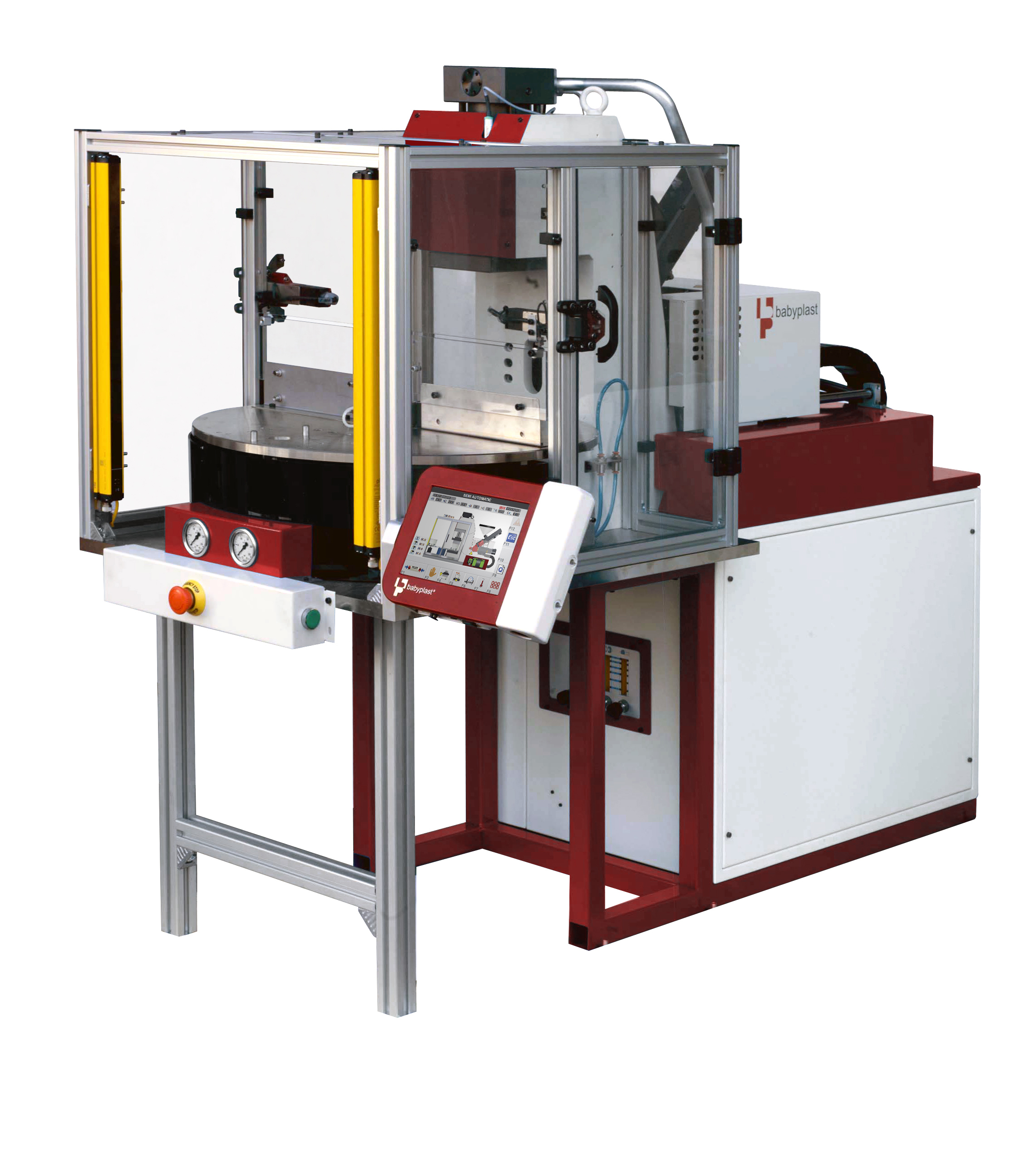

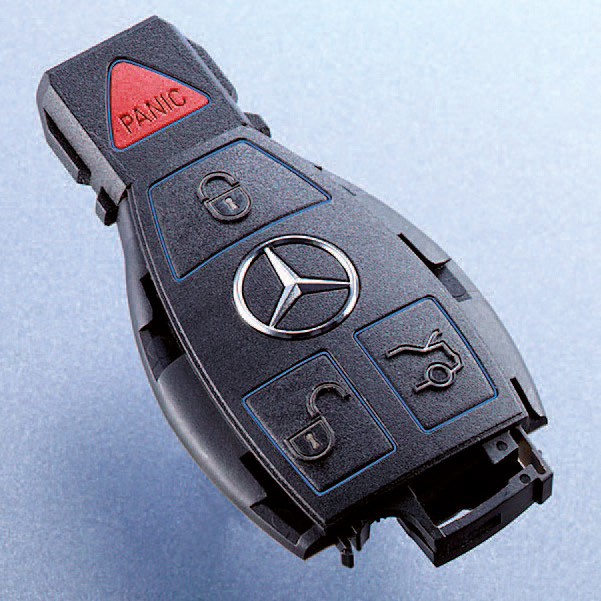

The vertical Babyplast injection moulding machine is often used when existing products need to be provided with an additional thermoplastic. The machine has no guide rods (holmen) so that the insertion of a basic product can be carried out easily. Examples of products are: plugs, filters, openers. The vertical Babyplast is also available with a rotation or V-table.

The benefits

  • Wide range of applications, prototyping, mass production, series production, material research, wide range of materials possible from very soft TPE to very hard ceramics.
  • Efficient, little space required, fast conversion times, little cooling required, little material loss with purging, energy efficient.
  • Quality, very precise and stable injection, short residence time resulting in no material degradation, no fiber breakage during plasticizing, low noise.
  • Turn-key projects, complete range of Babyplast peripheral equipment, moulds, commissioning, training, complete care.
  • Advanced controls, operator friendly controls, colour touchscreen, quick selection menus, injection graphs, Dutch language, data logging, quality control.
  • Many options, extensive optional features such as integrated turntable, branch picker, two-component unit, core pullers, etc.

Due to its special design, the Babyplast has a number of advantages compared to standard injection moulding machines:

  • Short residence time (no degradation)
  • Very precise injection
  • Significantly less internal leakage
  • Quality control
  • Glass fibers remain intact
  • Better fiber orientation
  • Precise product cooling in mold
  • Injection unit easily replaceable
  • Centric and eccentric injection
  • Peripherals can be integrated
  • Lower production costs per product
  • Purge less material loss
  • Smaller sprue branches
  • Lower investment costs
  • More energy efficient
  • Smaller machine surface
  • Cheaper die
  • Energy saving cooling
  • Shorter mold changeover times
  • More flexible production
  • Less loss in case of mold problems

Big in small injection molding

Babyplast distinguishes itself by using the original plunger injection molding technique. This is the technique for micro injection molding and offers many advantages. Babyplast started in the 80s with the micro injection molding machines and has expanded the delivery program and further developed the machines.

The Rambaldi Group is a holding company consisting of 3 European companies that collaborate in the development of Babyplast products and applications in the field of micro injection moulding.

The head office of Rambaldi+Co it srl (Italian) is responsible for the worldwide distribution. Cronoplast SL (Spanish) is responsible for the design, development and manufacturing. The CKT Gmbh (German) distributes Babyplast for the German market. Every entity in the group contributes to the development, improvement and implementation of Babyplast products.
