Babyplast LSR injection molding machine

The Babyplast injection molding machine is the smallest, fully hydraulic injection molding machine. Thanks to a unique concept of the clamping plates, which act as mold supports, the costs and dimensions of the mold are significantly reduced. The horizontal Babyplast requires less than 0.6m2 of floor space and is extremely quiet (<68dB).

Babyplast guarantees the greatest precision thanks to the special injection system and pre-plastification system. To obtain an optimal material volume, there are 5 interchangeable injection pistons available. The machine can be easily set using the clear touch screen.

The Babyplast injection moulding machine can be executed in a LSR (liquid silicone rubber) variant. This small variant LSR injection moulding machine reduces the costs for machine and moulds.

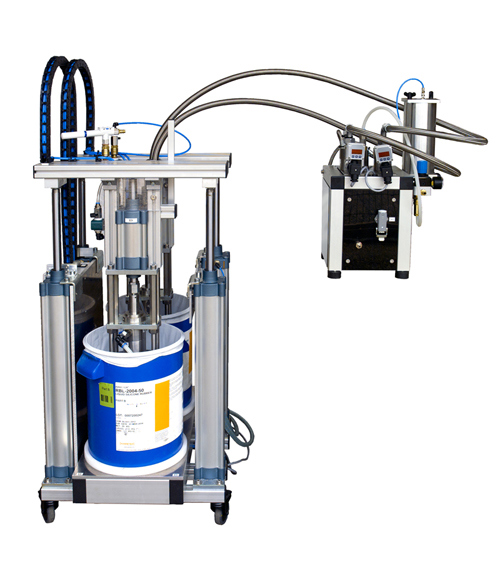

  • Available with various cartridge and container systems
  • Simple and clear operation
  • Accurate and stable injection
  • Advanced temperature control

There are 3 variants available:

  • LSR Horizontal Injection Molding Machine
  • LSR vertical injection molding machine
  • LSR 2K injection molding machine

Advantages of Babyplast LSR injection molding machines

For injection moulding small to very small LSR parts, Babyplast is a very suitable machine with many advantages.

  • Compact dies
  • User friendly
  • Energy efficient
  • Clear operation (Dutch)
  • 8” inch color touchscreen
  • Cooled machine nozzle with pneumatic valve for direct injection
  • Quality control adjustable
  • PID temperature control
  • 4 temperature zones with independent temperature adjustment
  • Storing more than 1000 production cycles
  • Save program via USB connection
  • Ethernet connection
  • Pressure, injection and closing mechanism electrically controlled
  • Hydraulics proportionally controlled
  • Euromap 67 connection (optional)
  • Available in 5 pistons from 3 to 15cc with 2650 to 815 bar
  • Cooling circuits: 6 pieces
  • Hydraulic ejector with sensor
  • Air blower and core puller

Big in small injection molding

Babyplast distinguishes itself by using the original plunger injection molding technique. This is the technique for micro injection molding and offers many advantages. Babyplast started in the 80s with the micro injection molding machines and has expanded the delivery program and further developed the machines.

The Rambaldi Group is a holding company consisting of 3 European companies that collaborate in the development of Babyplast products and applications in the field of micro injection moulding.

The head office of Rambaldi+Co it srl (Italian) is responsible for the worldwide distribution. Cronoplast SL (Spanish) is responsible for the design, development and manufacturing. The CKT Gmbh (German) distributes Babyplast for the German market. Every entity in the group contributes to the development, improvement and implementation of Babyplast products.
